Prototype breadboard version
playing Anamanaguchi's 'Prom Night'

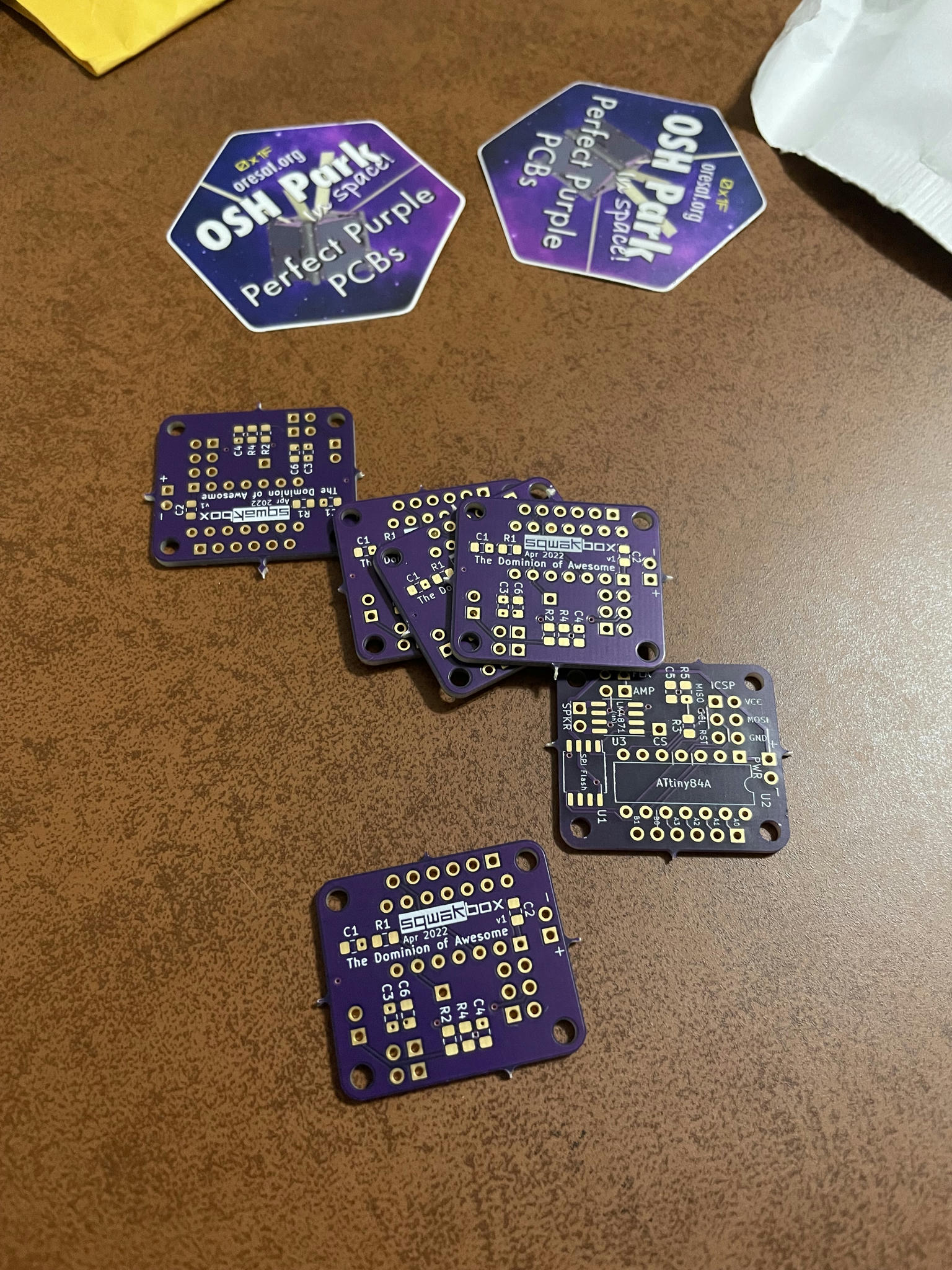

A pile of version 1 boards

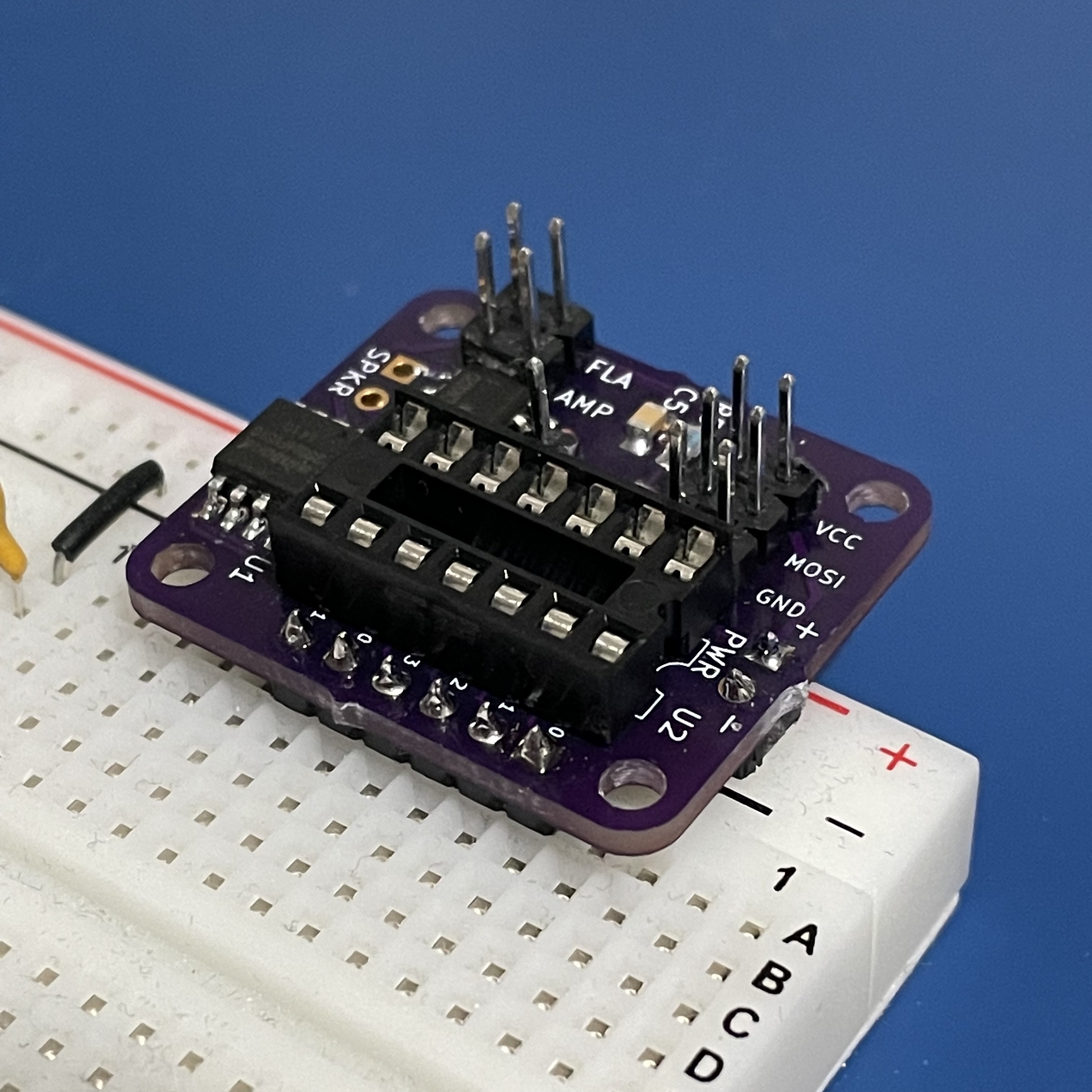

Board inserted into a
breadboard

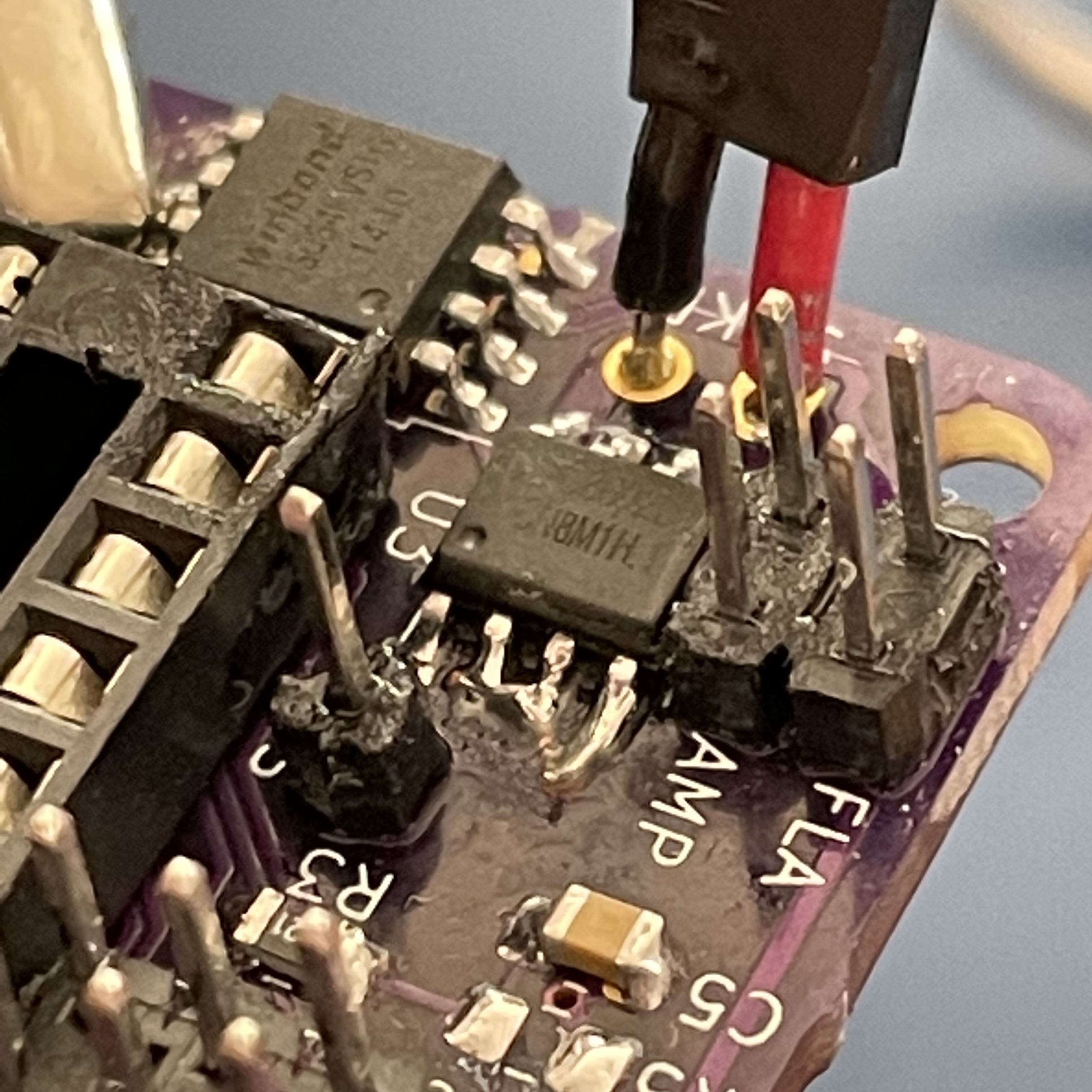

Some rework carnageTesting v1 on a breadboard

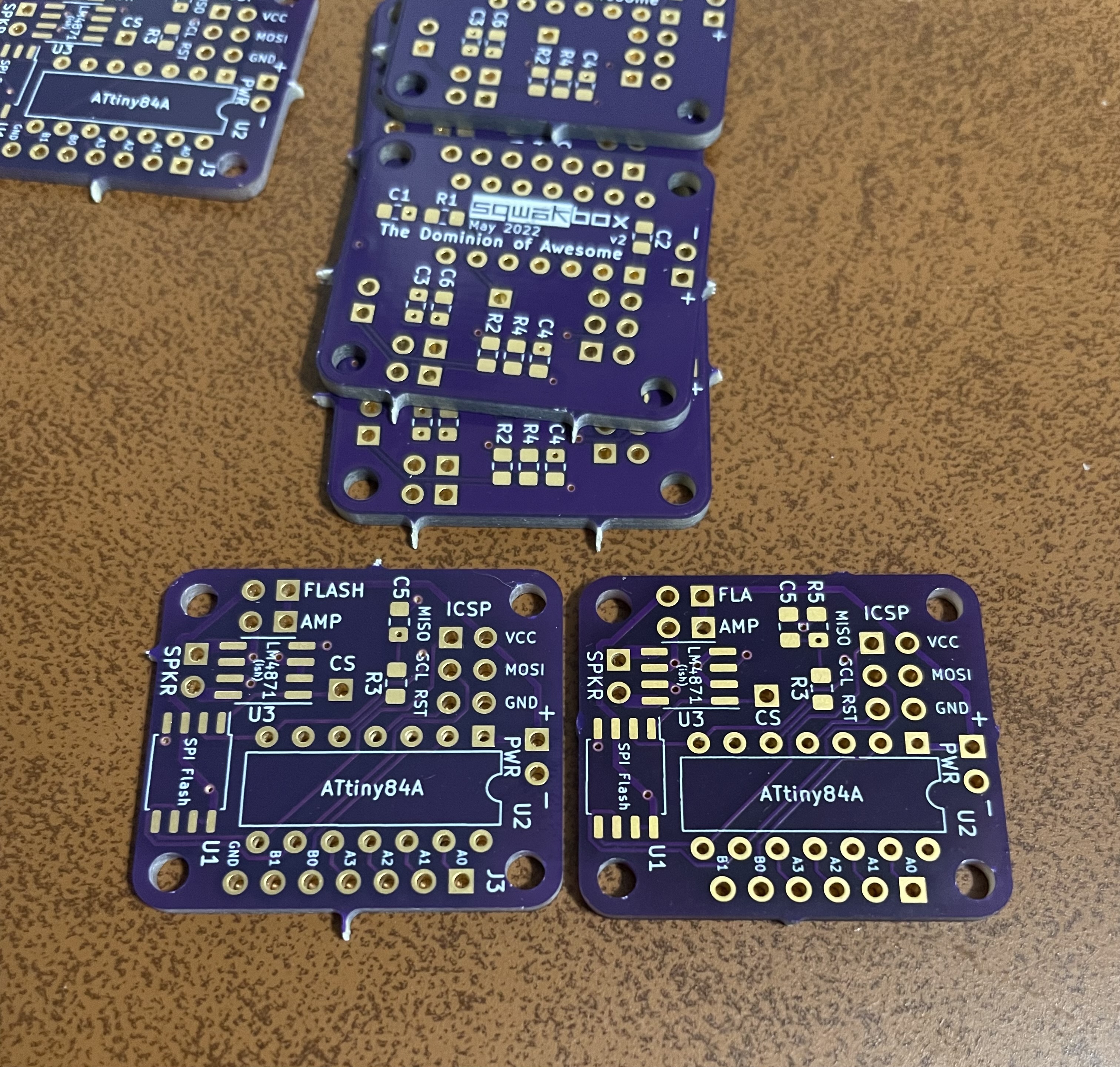

Version 2 compared with
version 1. IIRC the only real changes were the removal of a resistor
from the low-pass filter and the addition of a ground pin near the
inputs.

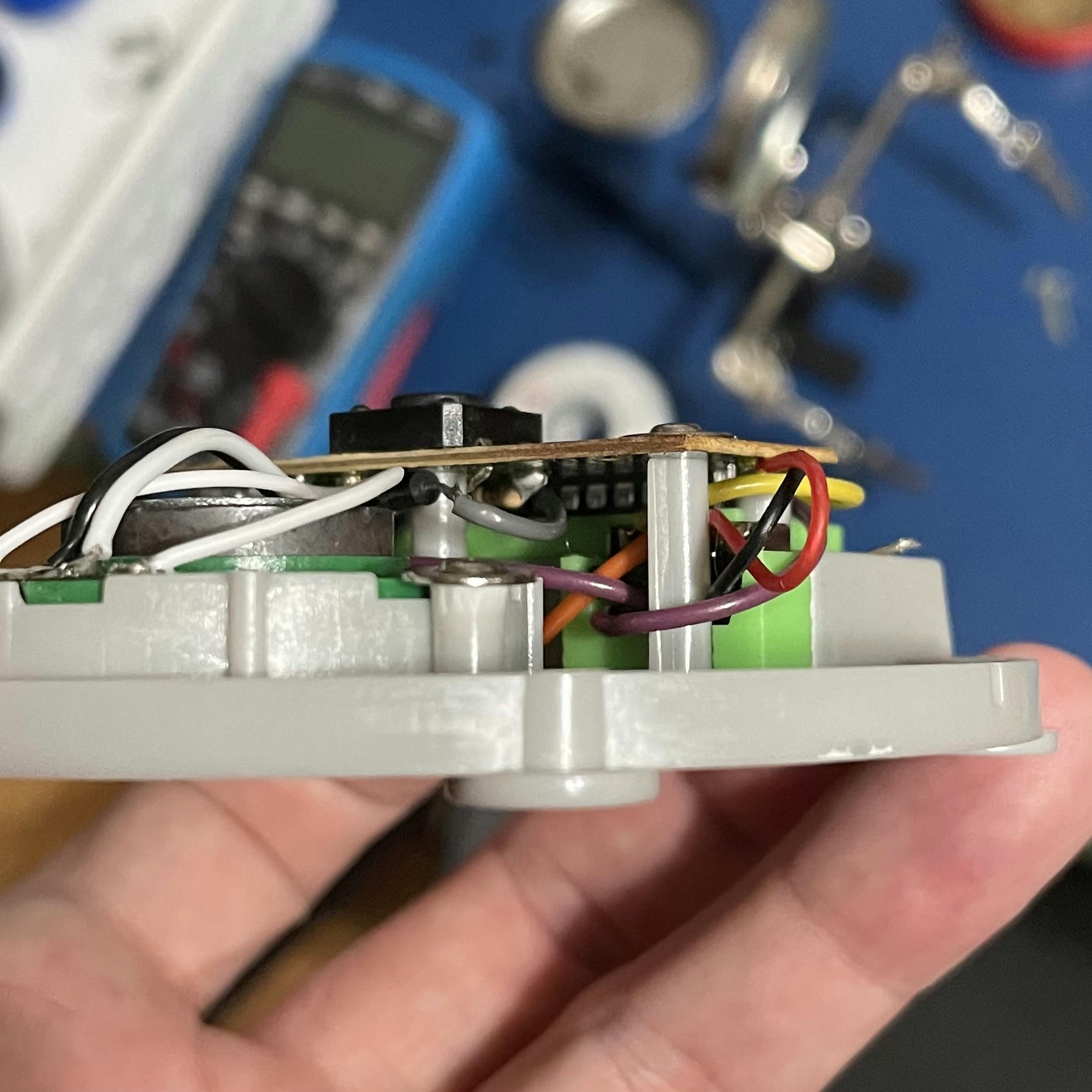

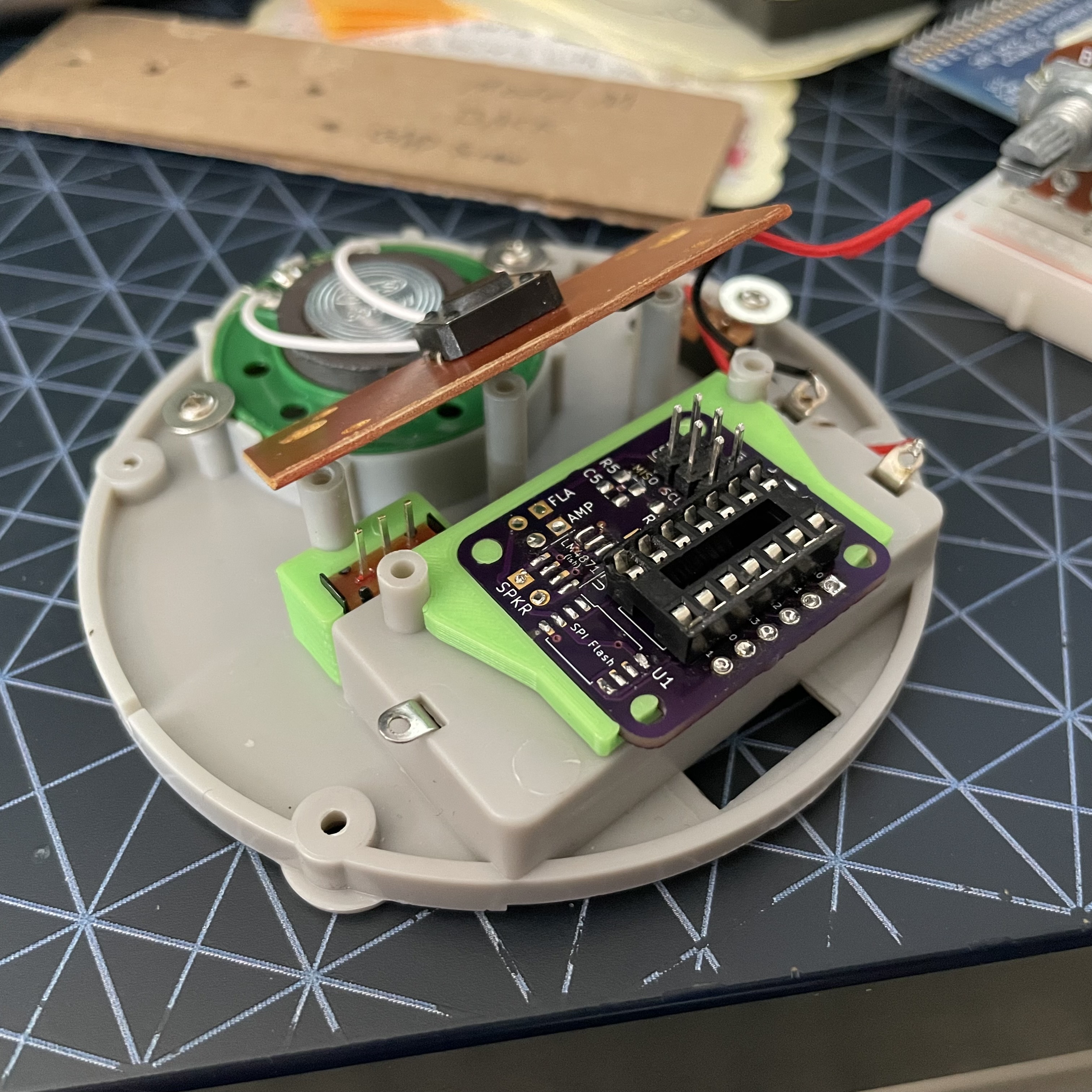

Wiring
the SQWAK BOX into an exisiting button. This was a prank we played on a
friend.
