Spite Sprite
Board renders

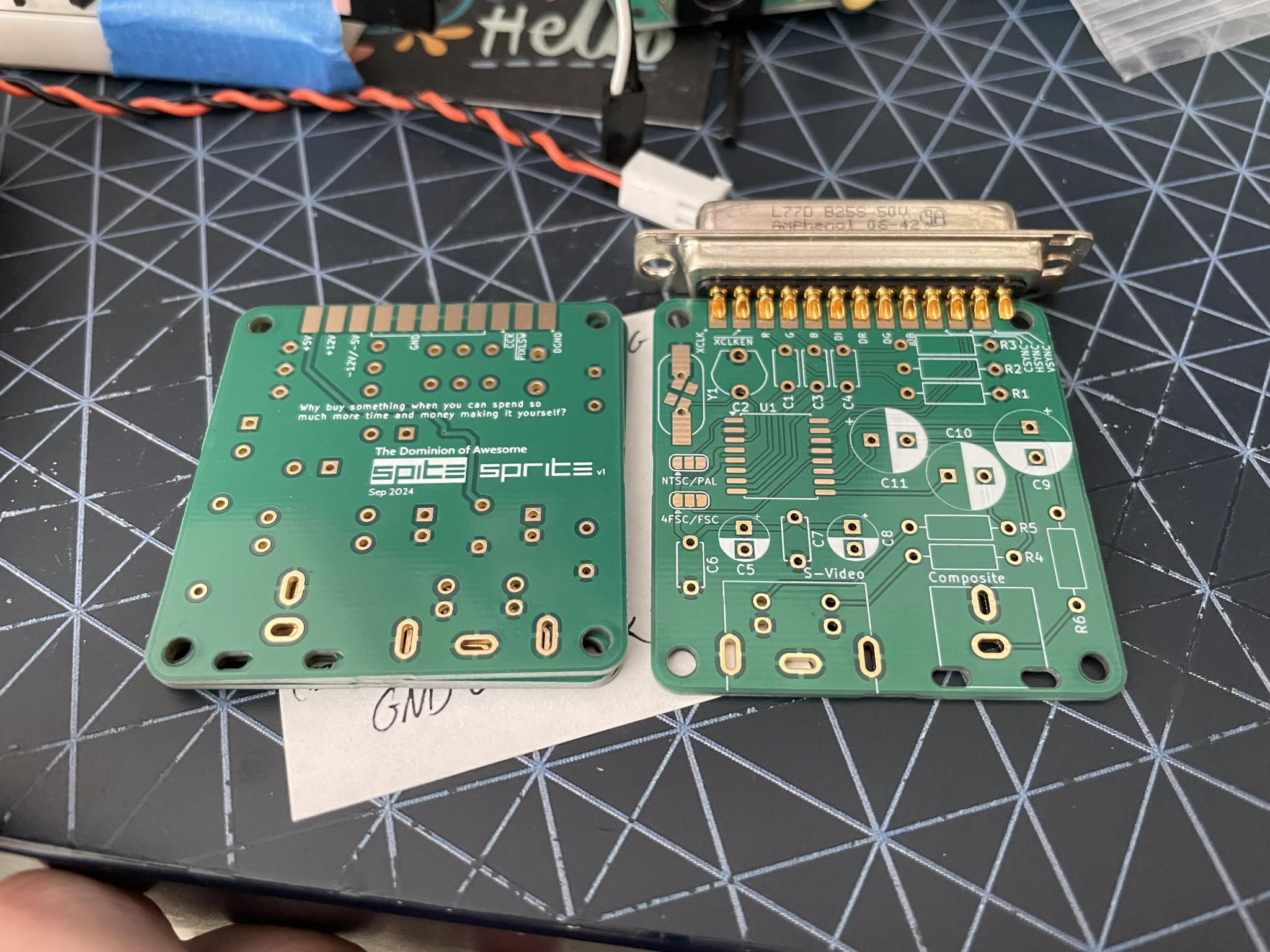

Boards, with a test-fit of the

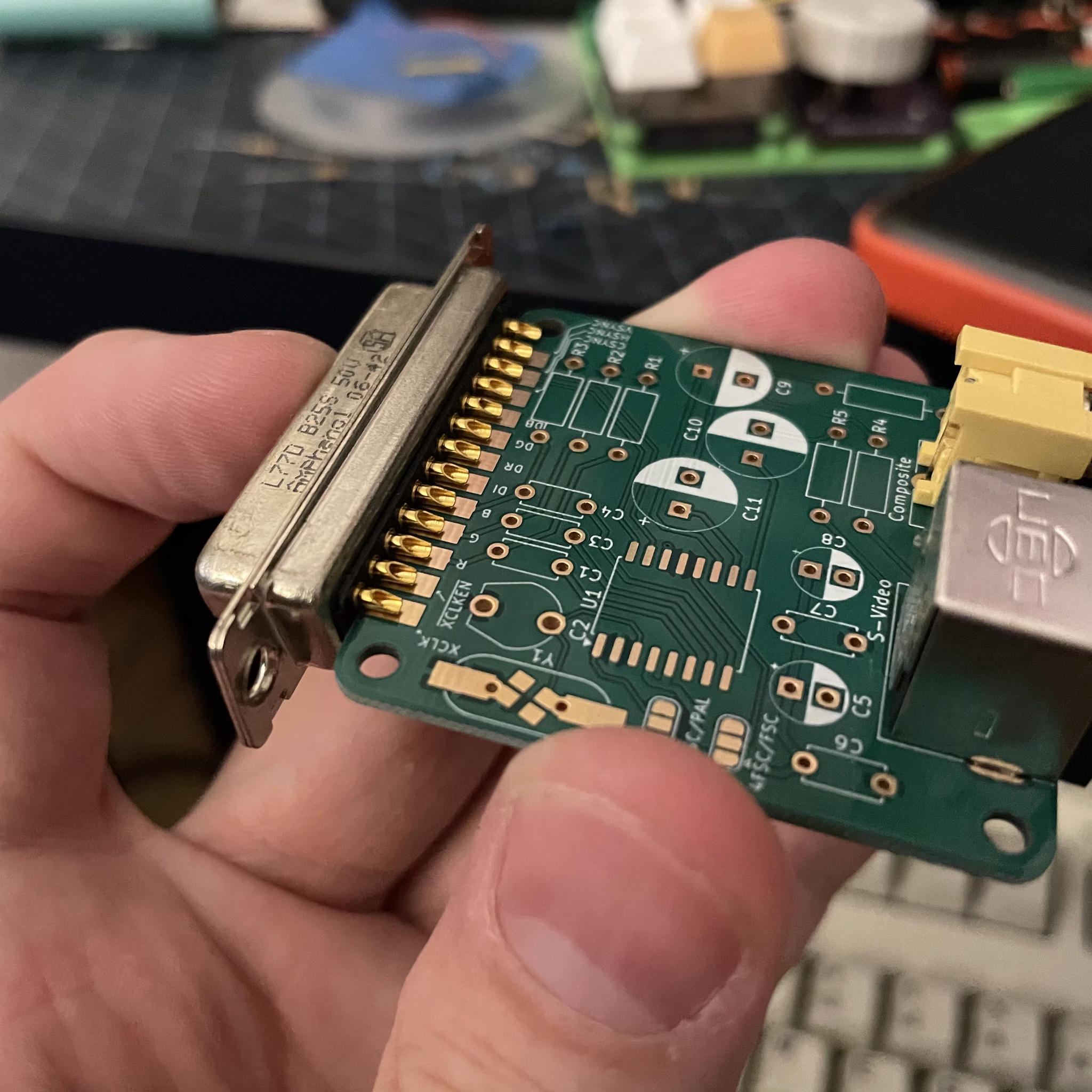

DB-25 connector
More test-fitting of the D-sub
connector

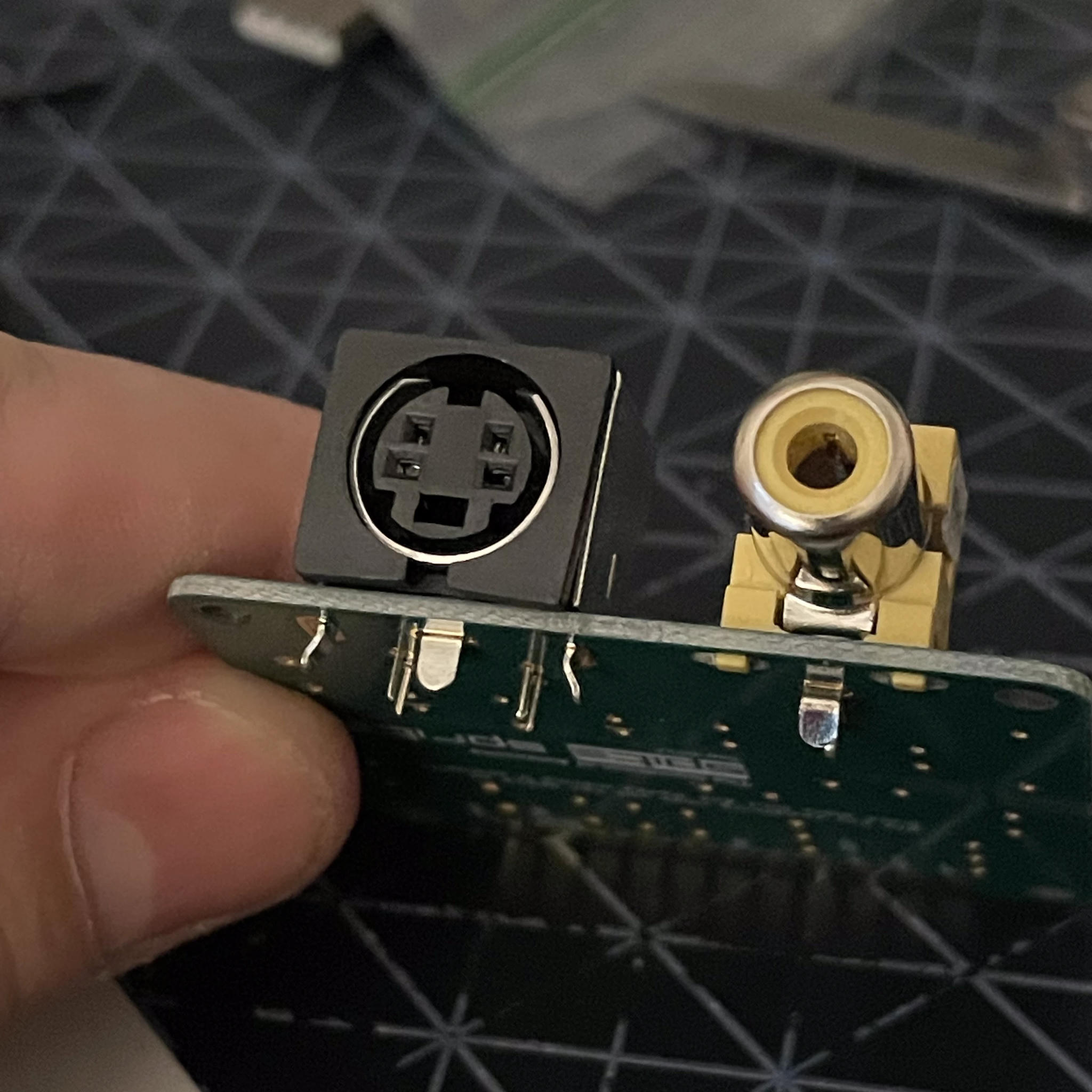

Test-fitting the S-Video
and composite connectors

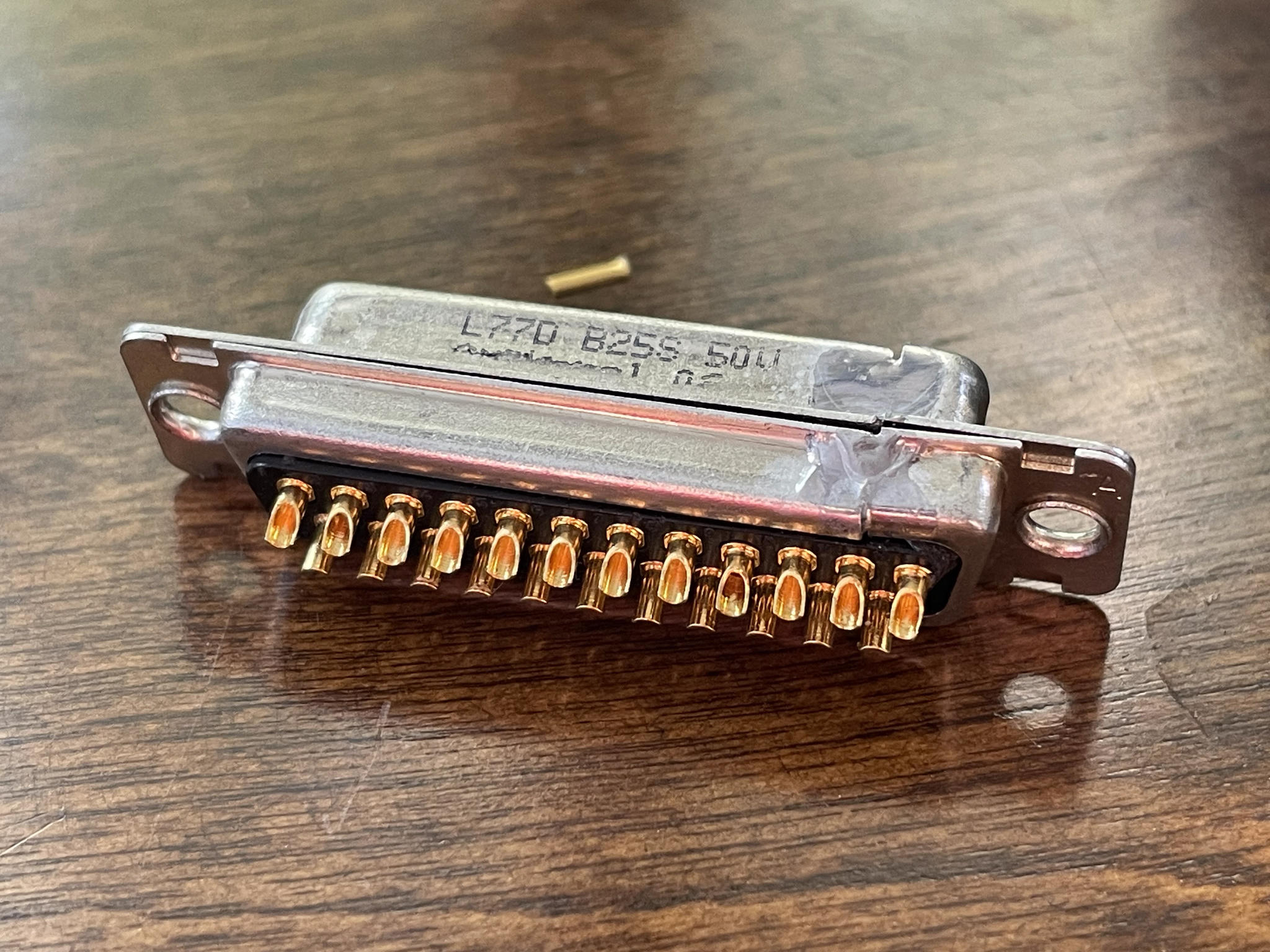

Modifying the DB-25

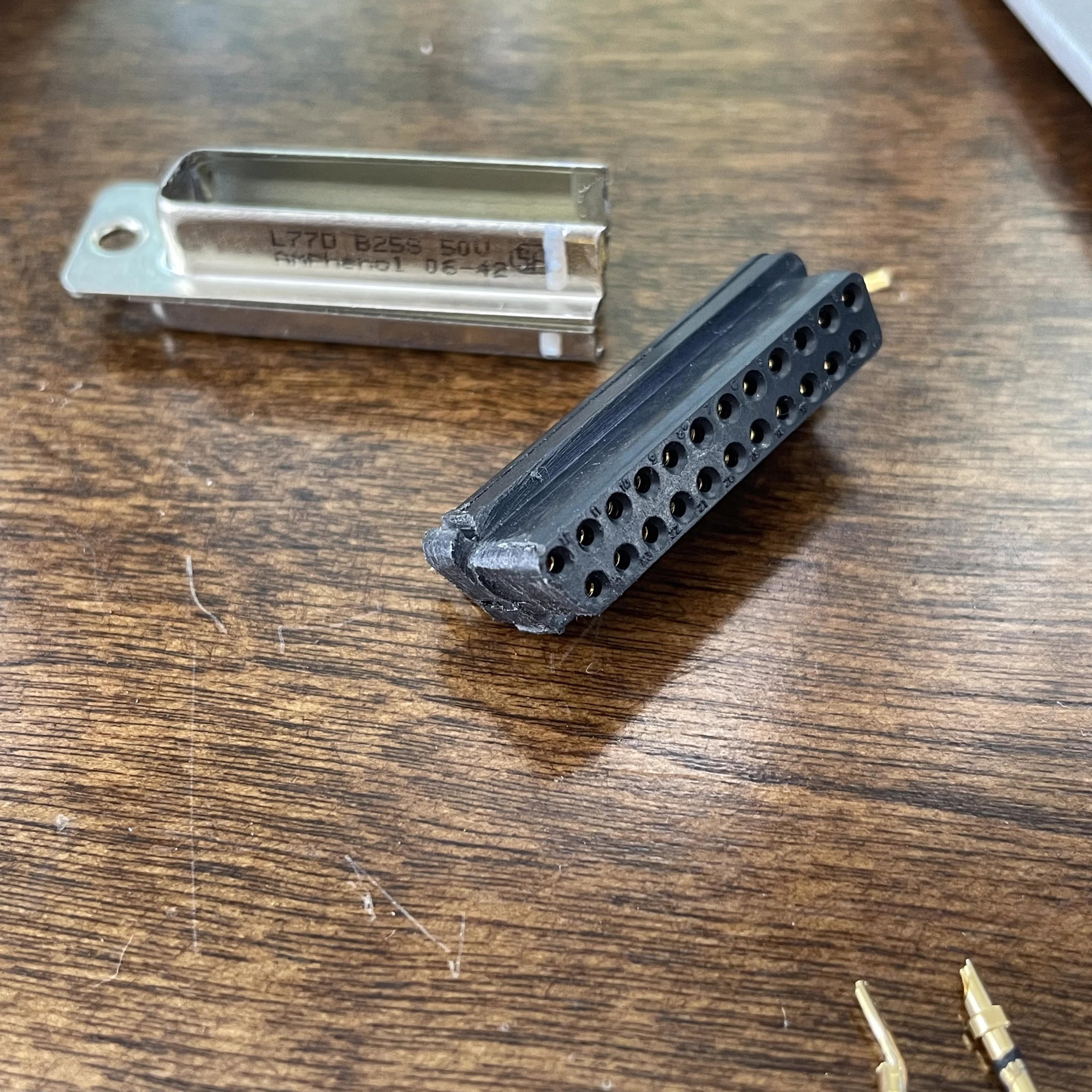

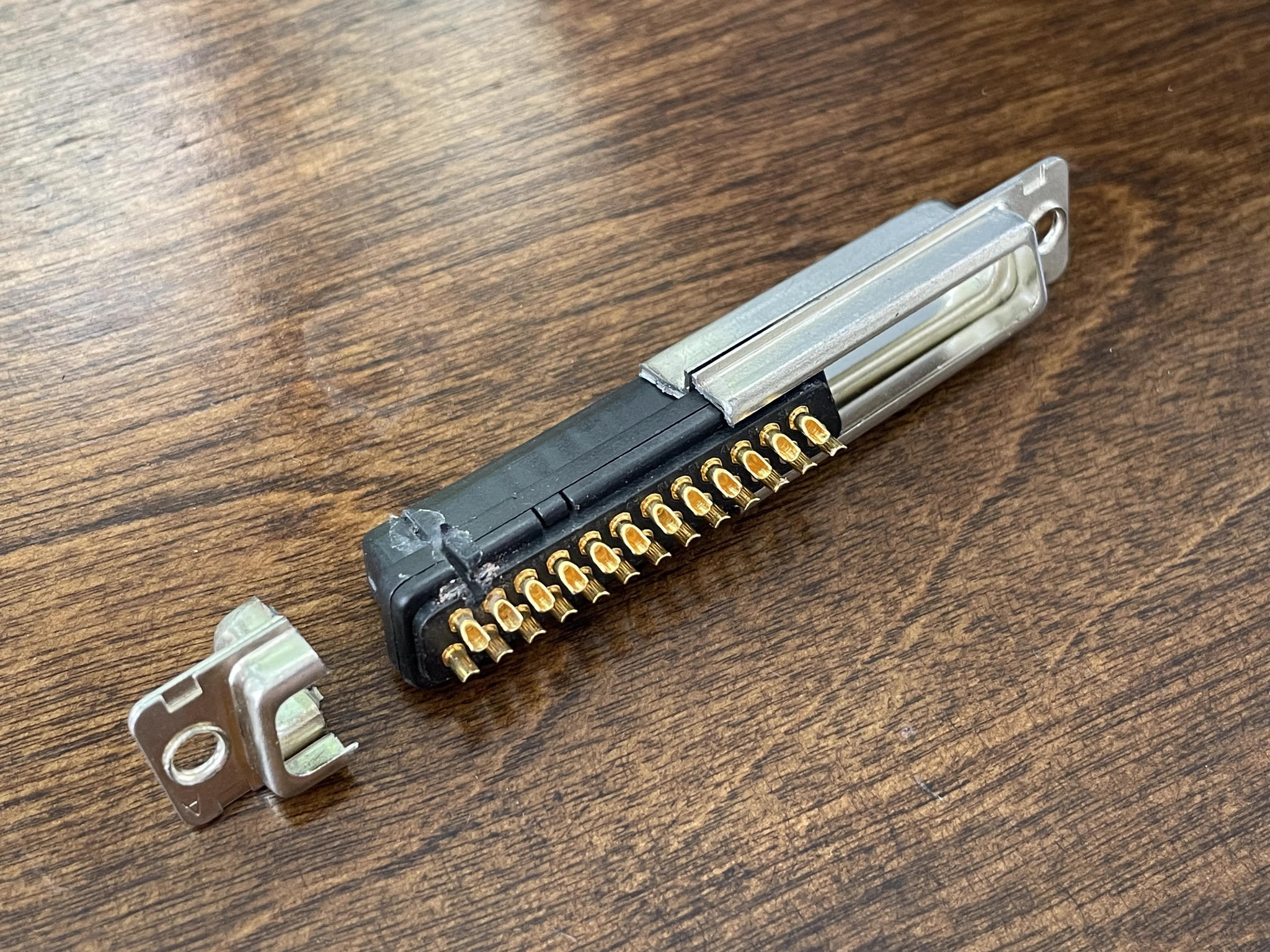

connector to remove two pins. First, the outer shell was cut and
separated.

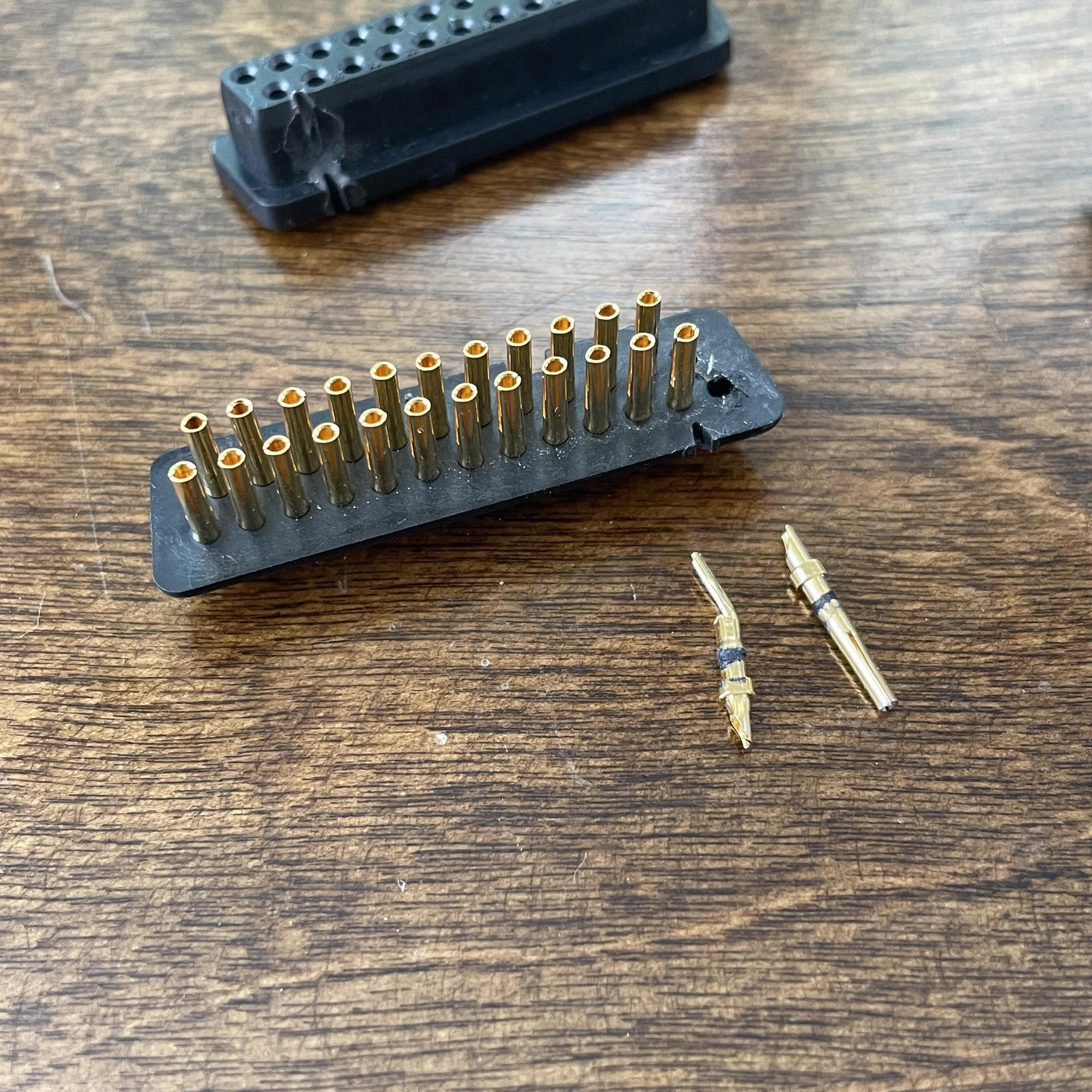

The extra pins were
removed with a soldering iron and brute force. They snap in, but they
definitely did not snap out.
I cut off the extra
plastic with a Dremel. The shell is marked for surgery.

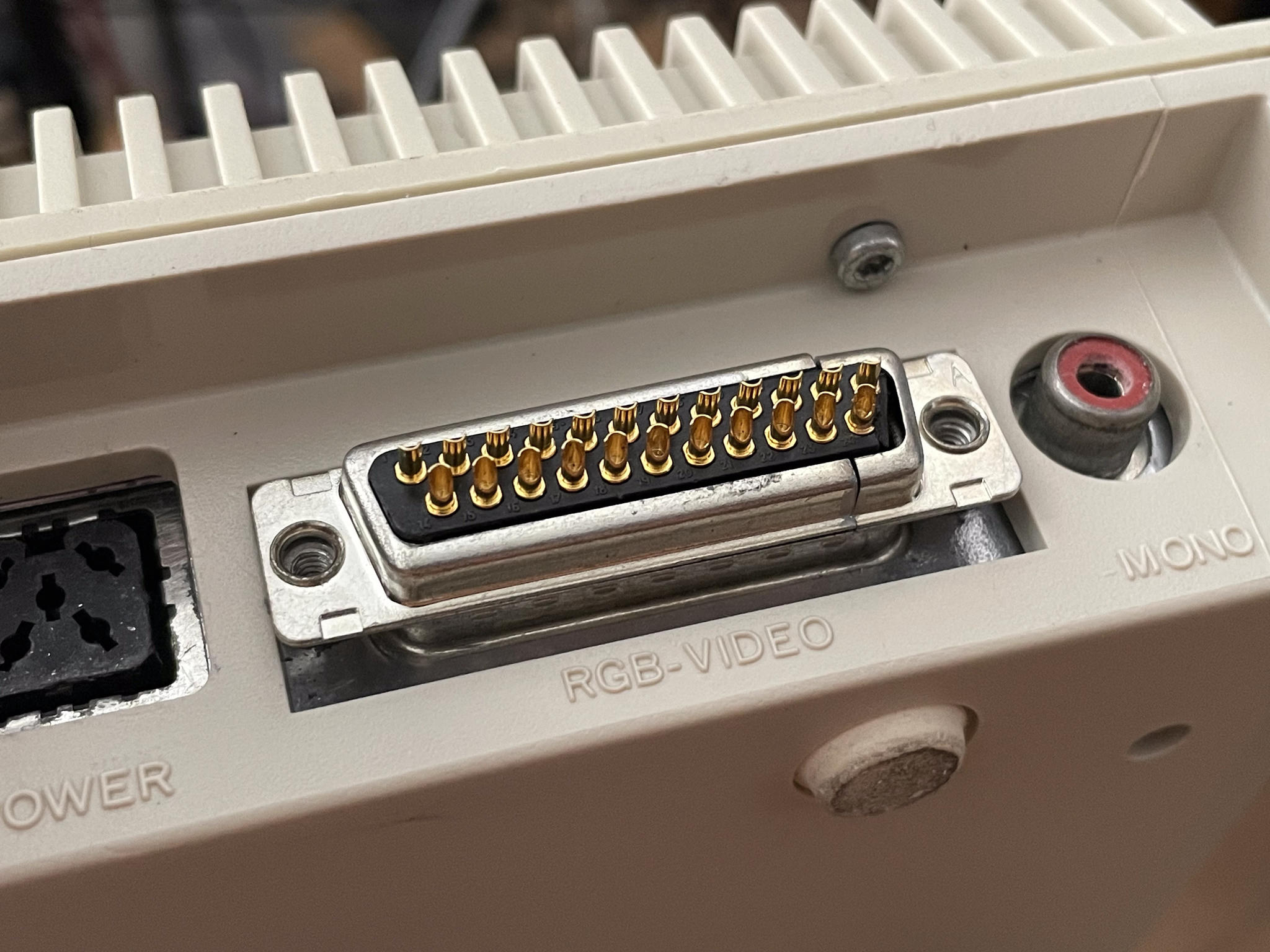

After cutting down the
shell, I test fit it in the Amiga.
The shell was soldered
back together.

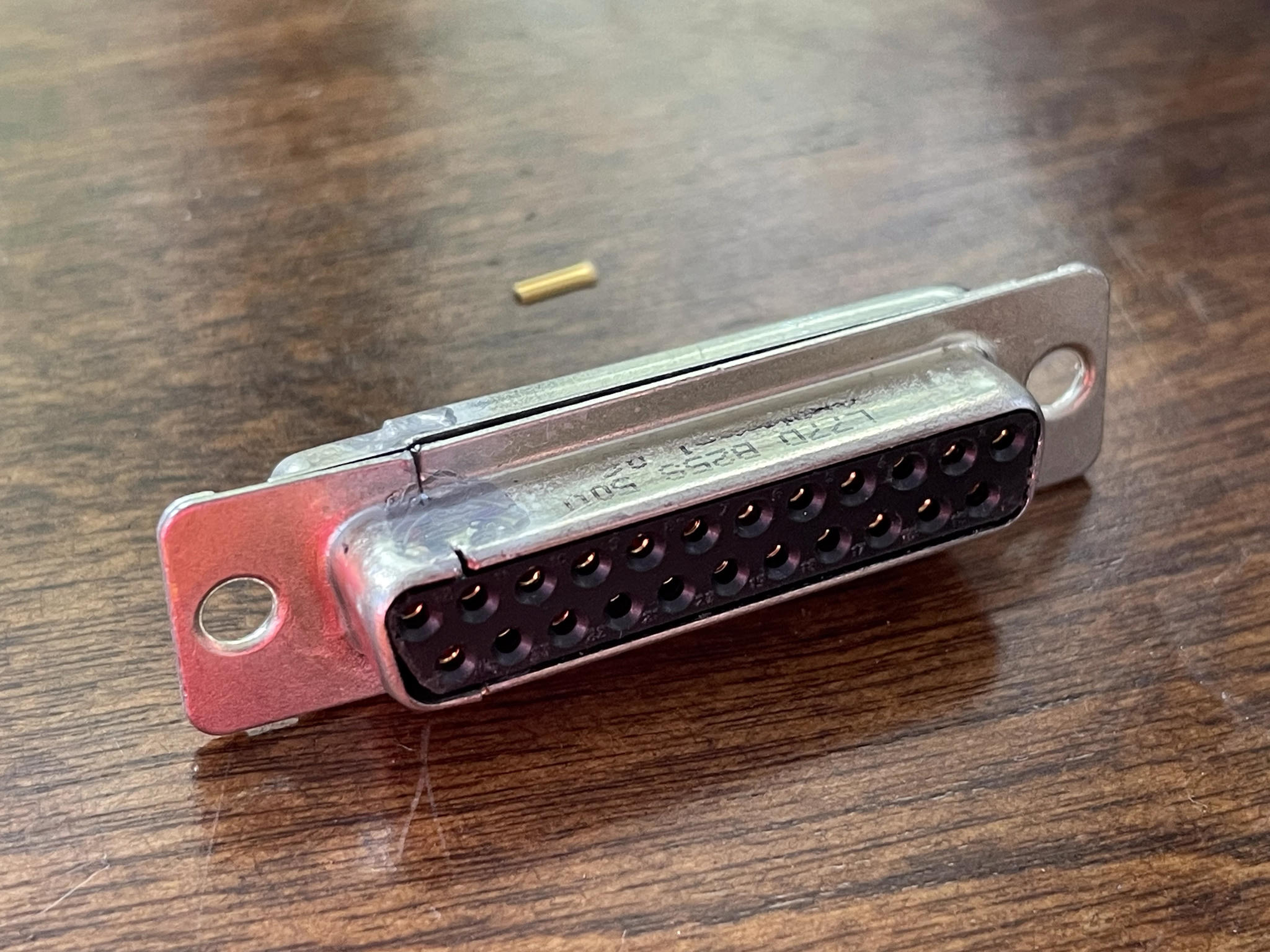

And viewed from the other
side. Alignment isn't great, but it works.

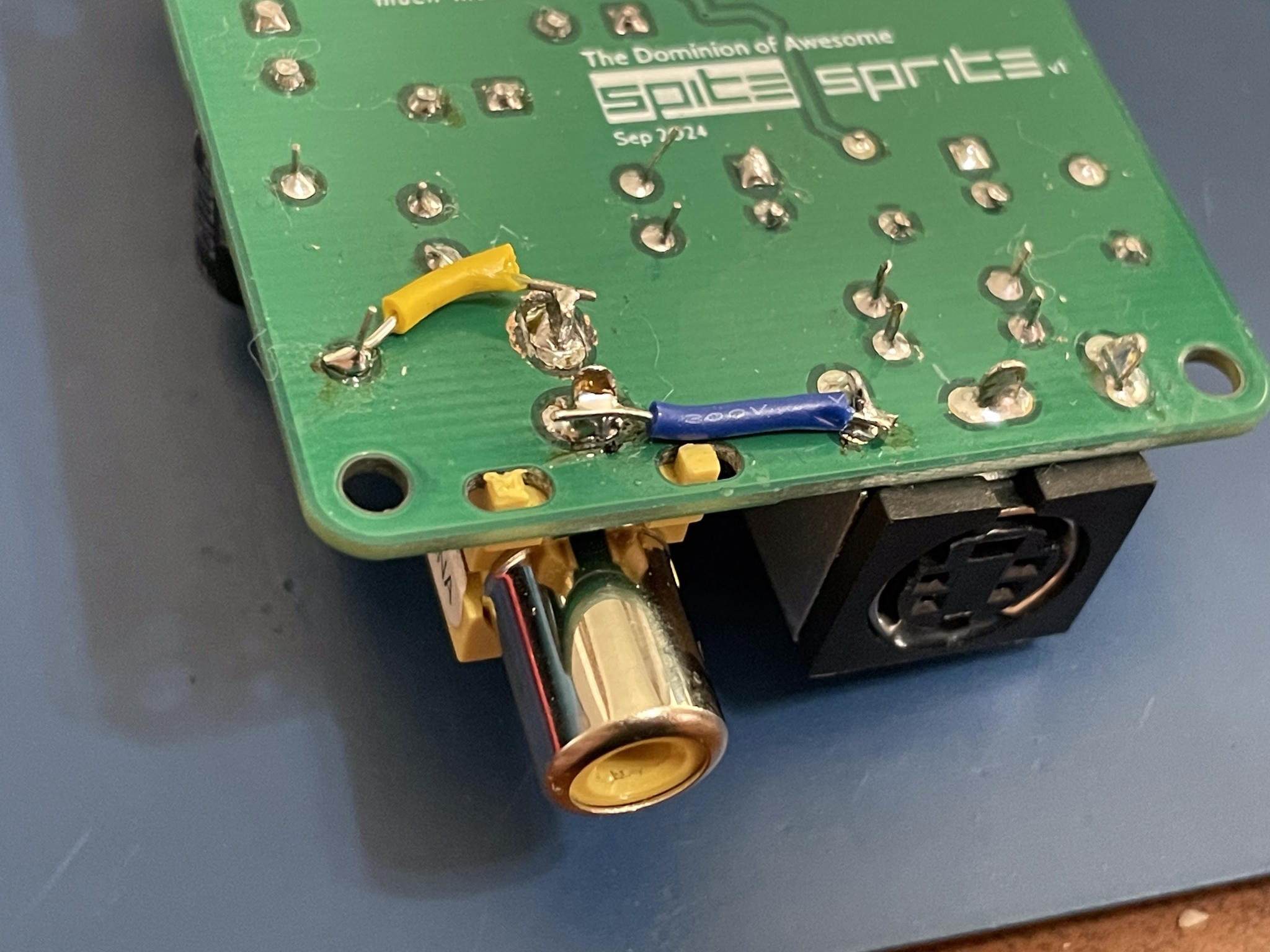

I made the RCJ-04X
footprint myself and got the pins backwards. Here I bodged them the
other way around.
